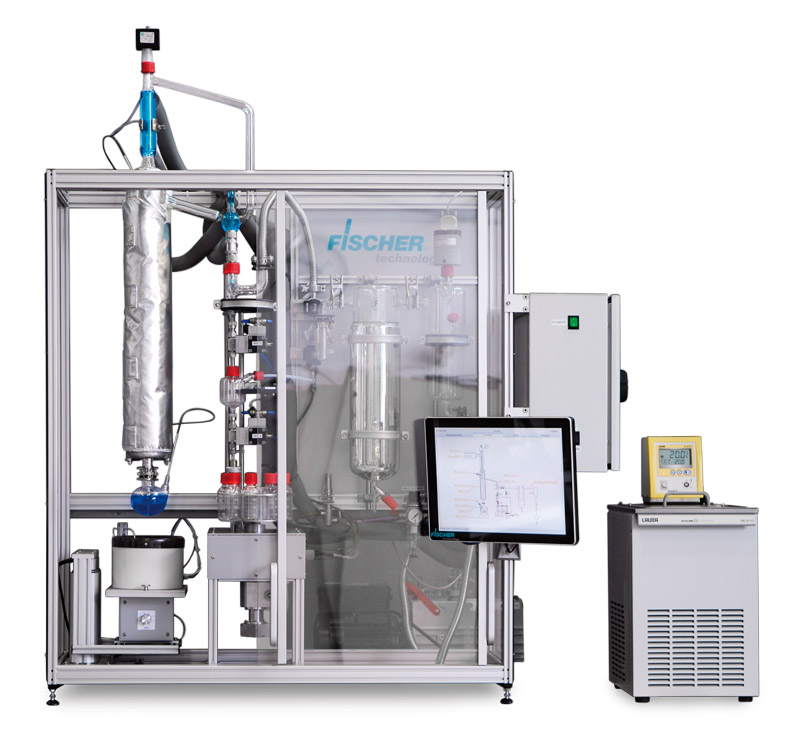

FISCHER^® LABODEST^® HMS 500 AC

Automatic Semi-Micro-Distillation-Unit with the FISCHER^® SPALTROHR^® -Column

Compact and especially versatile, the fully automated FISCHER^® LABODEST^® HMS 500 AC is a unit with highest separation efficiency

A modular system, which can be designed according to specific requirements including an equipment for recording the distillation curve or for printing-out the distillation record by means of a printer or for connection for electronic data processing.

Technical Data:

• Charge Quantity 10...500 ml
• Operation Temperature up to 200°C, with optional extension: up to 350°C
• Operation Pressure Atmospheric or Vacuum 10 0...0.1 mbar
• Pressure Drop < 0.1 mbar
• Separation Efficiency up to 90 theoretical plates
• Mains Supply 230 V, 50 Hz
• Dimensions (w x d x h) 1.25 x 0.60 x 1.70 m
• Weight approx. 100 kg
